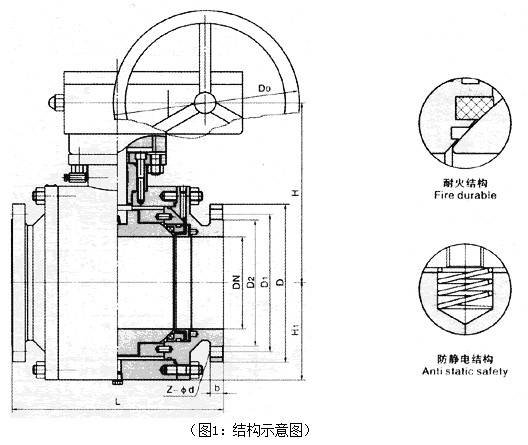

固定球阀连接尺寸参数 单位:mm
固定球阀pn1.6mpa压力级别
| 产品型号 type |
公称通径 dn |
pn1.6mpa | wt （kg） |
||||||||
| l | d | d1 | d2 | b | z-φd | h | h1 | d0 | |||
cq47f-16c cq347f-16c cq647f-16c cq747f-16c cf9b47f-16c |
50 | 178 | 160 | 125 | 100 | 16 | 4-φ18 | 160 | 85 | - | 28 |
| 65 | 191 | 180 | 145 | 120 | 18 | 4-φ18 | 170 | 95 | - | 32 | |
| 80 | 203 | 195 | 160 | 135 | 20 | 8-φ18 | 200 | 110 | - | 44 | |
| 100 | 229 | 215 | 180 | 155 | 20 | 8-φ18 | 210 | 120 | - | 86 | |
| 125 | 356 | 245 | 210 | 185 | 22 | 8-φ18 | 350 | 215 | - | 133 | |
| 150 | 394 | 280 | 240 | 210 | 24 | 8-φ23 | 530 | 190 | - | 203 | |
| 200 | 457 | 335 | 295 | 265 | 26 | 12-φ23 | 575 | 230 | 600 | 273 | |
| 250 | 533 | 405 | 355 | 320 | 30 | 12-φ25 | 585 | 260 | 600 | 450 | |
| 300 | 610 | 460 | 410 | 375 | 30 | 12-φ25 | 730 | 300 | 600 | 583 | |
| 350 | 686 | 520 | 470 | 435 | 34 | 16-φ25 | 860 | 350 | 800 | 750 | |
| 400 | 762 | 580 | 525 | 485 | 36 | 16-φ30 | 935 | 395 | 800 | 1190 | |
| 450 | 864 | 640 | 585 | 545 | 40 | 20-φ30 | 975 | 440 | 800 | 2100 | |
| 500 | 914 | 705 | 650 | 608 | 44 | 20-φ34 | 1060 | 485 | 800 | 3100 | |
| 600 | 1067 | 840 | 770 | 718 | 48 | 20-φ41 | 1170 | 591 | 800 | 3980 | |
| 700 | 1245 | 910 | 840 | 788 | 50 | 24-φ41 | 1270 | 686 | 800 | 4800 | |
固定球阀pn2.5mpa压力级别
| 产品型号 type |
公称通径 dn |
pn2.5mpa | wt （kg） |
||||||||
| l | d | d1 | d2 | b | z-φd | h | h1 | d0 | |||
cq47f-25 cq347f-25 cq647f-25 cq747f-25 cf9b47f-25 |
50 | 216 | 160 | 125 | 100 | 20 | 4-φ18 | 160 | 85 | - | 30 |
| 65 | 241 | 180 | 145 | 120 | 22 | 8-φ18 | 170 | 95 | - | 40 | |
| 80 | 283 | 195 | 160 | 135 | 22 | 8-φ18 | 200 | 110 | - | 52 | |
| 100 | 305 | 230 | 190 | 160 | 24 | 8-φ23 | 210 | 120 | - | 97 | |
| 125 | 381 | 270 | 220 | 188 | 28 | 8-φ25 | 350 | 215 | - | 135 | |
| 150 | 403 | 300 | 250 | 218 | 30 | 8-φ25 | 530 | 190 | - | 204 | |
| 200 | 502 | 360 | 310 | 278 | 34 | 12-φ25 | 575 | 230 | 600 | 322 | |
| 250 | 568 | 425 | 370 | 332 | 36 | 12-φ30 | 585 | 260 | 600 | 535 | |
| 300 | 648 | 485 | 430 | 390 | 40 | 16-φ30 | 730 | 300 | 600 | 775 | |
| 350 | 762 | 550 | 490 | 448 | 44 | 16-φ34 | 860 | 350 | 800 | 1210 | |
| 400 | 838 | 610 | 550 | 505 | 48 | 16-φ34 | 935 | 395 | 800 | 2300 | |
| 450 | 914 | 660 | 600 | 555 | 50 | 20-φ34 | 975 | 440 | 800 | 3400 | |
| 500 | 991 | 730 | 660 | 610 | 52 | 20-φ41 | 1060 | 485 | 800 | 4208 | |
| 600 | 1143 | 840 | 770 | 718 | 56 | 20-φ41 | 1170 | 591 | 800 | 5080 | |
| 700 | 1346 | 955 | 875 | 815 | 60 | 24-φ48 | 1270 | 686 | 800 | 5750 | |
